Package edu.rice.cs.drjava.ui

The ui package contains classes for the default user interface for DrJava.

See:
Description

Interface Summary

ClipboardHistoryFrame.CloseAction	Interface for an action to be performed when the user closes the frame, either by using "OK" or "Cancel".
InteractionsController.ConsoleStateListener	A listener interface that allows for others outside the interactions controller to be notified when the input console is enabled in the interactions pane.
RecentFileManager.RecentFileAction	This interface is to be implemented and passed to the manager upon creation.
RegionsTreePanel.IChangeState	State pattern for improving performance during rapid updates.

Class Summary

AbortablePanel	Panel for displaying some component with buttons, one of which is an "Abort" button.
AboutDialog	About dialog.
AboutDialog.ImageInfo
AbstractConsoleController	Abstract class that hooks a Swing console/interactions document with its Swing pane.
AbstractDJPane	This pane class for a SwingDocument.
BookmarksPanel	Panel for displaying bookmarks.
BreakpointsPanel	Panel for displaying the breakpoints.
BreakpointsPanel.BreakpointRegionTreeUserObj	Class that gets put into the tree.
BrowserHistoryPanel	Panel for displaying browser history.
ClassPathFilter	A file filter for files with extensions ".jar"/".zip".
ClipboardHistoryFrame	Frame with history of clipboard.
ClipboardHistoryFrame.FrameState	Class to save the frame state, i.e.
CommonCloseButton	Common button that can be instantiated to create close buttons with any ActionListener to notify, or not, if you so choose.
CompilerErrorPanel	The panel which houses the list of errors after an unsuccessful compilation.
ConsoleController	A Swing specific console controller class that includes both a Swing InteractionsDJDocument and a GUI agnostic ConsoleDocument (wrapping the former).
DebugPanel	Panel for displaying the debugger input and output in MainFrame.
DefinitionsPane	The pane in which work on a given OpenDefinitionsDocument occurs.
DefinitionsPaneTest	Tests the Definitions Pane
DetachedFrame
DetachedFrame.FrameState	Class to save the frame state, i.e.
DirectoryFilter	A file filter for selecting directories.
DrJavaErrorHandler	The handle() method in this class is called everytime an uncaught exception propagates to an AWT action.
DrJavaErrorHandler.LoggedCondition	The throwable used for logging unexpected situations.
DrJavaErrorPopup	Displays a popup window for the first uncaught exception or logged conditions.
DrJavaErrorWindow	Displays uncaught exceptions and logged conditions.
DrJavaScrollableDialog	A JDialog with a scrollable text area and a button panel.
DrJavaSurveyPopup	Asks whether DrJava may contact the DrJava developers and send information about the operating system and the Java version used.
EditExternalDialog
EditExternalDialog.FrameState	Class to save the frame state, i.e.
ErrorCaretListener	Listens to the caret in the associated DefinitionsPane and highlights the text containing CompilerErrors.
ErrorPanel	This class contains common code and interfaces from CompilerErrorPanel, JUnitPanel, and JavadocErrorPanel.
ExecuteExternalDialog
ExecuteExternalDialog.FrameState	Class to save the frame state, i.e.
ExternalProcessPanel	Panel for displaying some component with buttons, one of which is an "Abort" button.
FindResultsPanel	Panel for displaying find results.
HelpFrame	The frame for displaying the HTML help files.
HistorySaveDialog	Displayed when the user chooses to save the interactions history.
HTMLFrame	The frame for displaying the HTML help files.
HTMLFrame.HistoryList
HTMLFrame.ResourceAction
InsertVariableDialog	Dialog allowing the user to select a variable.
InteractionsController	This class installs listeners and actions between an InteractionsDocument (the model) and an InteractionsPane (the view).
InteractionsHistoryFilter	A file filter for files with extensions ".hist".
InteractionsPane	The view component for repl interaction.
InteractionsPaneTest	Test functions of InteractionsPane.
InteractionsScriptController	Controller for an interactions script.
InteractionsScriptPane	Pane for an interactions script.
JarOptionsDialog
JarOptionsDialog.FrameState	Class to save the frame state, i.e.
JavadocDialog	Manages a dialog box that can select a destination directory for generating Javadoc.
JavadocErrorPanel	The panel which displays all the Javadoc parsing errors.
JavadocFrame	DrJava's Javadoc viewing frame
JavaSourceFilter	A file filter for files with extensions ".java" and ".gj".
JUnitPanel	The panel that displays all the testing errors.
KeyBindingManager	Contains Hashtables that are used in the key-binding process along with methods to build them and access their contents.
KeyBindingManager.KeyStrokeData
LessPanel	Panel for displaying some component with buttons, one of which is an "Abort" button.
LineEnumRule	The row header of the DefinitionsPane which displays the line numbers
MainFrame	DrJava's main window.
MainFrame.GoToFileListEntry	Wrapper class for the "Go to File" and "Auto-Complete" dialog list entries.
MainFrame.JavaAPIListEntry	Wrapper class for the "Open Javadoc" and "Auto Import" dialog list entries.
MainFrameTest	Test functions of MainFrame.
NewVersionPopup	Displays whether a new version of DrJava is available.
PreviewConsoleFrame	DrJava's print preview window for a console document (interactions or console)
PreviewDefDocFrame	DrJava's print preview window for a definitions document
PreviewFrame	DrJava's print preview window
ProjectMenuTest	Test functions of Project Facility working through the main frame and model.
ProjectPropertiesFrame	A frame for setting Project Preferences
QuickStartFrame	The frame for displaying the HTML quick start files.
RecentDocFrame	This class extends a Swing view class.
RecentFileManager	Manages a list of the most recently used files to be displayed in the File menu.
RecentFileManagerTest	Test functions of RecentFileManager.
RegionsListPanel<R extends IDocumentRegion>	Panel for displaying regions in a list in the order specified by indices passes to addRegion.
RegionsListPanel.RegionListUserObj<R extends IDocumentRegion>	Class that gets put into the list.
RegionsTreePanel<R extends OrderedDocumentRegion>	Panel for displaying regions in a tree sorted by class name and line number.
RegionsTreePanel.RegionTreeUserObj<R extends OrderedDocumentRegion>	Class that is embedded in each leaf node.
ReverseHighlighter	Implements the Highlighter interfaces.
ReverseHighlighter.DefaultFrameHighlightPainter	Simple highlight painter that draws a rectangular box around text.
ReverseHighlighter.DefaultUnderlineHighlightPainter	Simple highlight painter that underlines text.
ReverseHighlighter.DrJavaHighlightPainter	This class is a wrapper for the DefaultHighlightPainter that allows us to tell whether a highlight was requested by DrJava or by Swing (as in selected text).
SimpleInteractionsWindow	A standalone Interactions Window that provides the functionality of DrJava's Interactions Pane in a single JVM.
SplashScreen	A splash screen window to be displayed as DrJava is first starting up.
TabbedPanel	Extended by all panels that can dynamically be added or removed from the _tabbedPane in MainFrame.

Package edu.rice.cs.drjava.ui Description

The ui package contains classes for the default user interface for DrJava. The interface allows multiple documents to be open, but requires that exactly one document is active at any time, since only one document is displayed in the GUI. This is enforced by subclassing the DefaultGlobalModel in the model package to add additional constraints to the logic and state of DrJava, while maintaining the separation from the pure user interface classes.

Additional Logic

The SingleDisplayModel is a subclass of DefaultGlobalModel, primarily providing the constraint that exactly one document is active at any time. It adds public methods for getting and setting the currently active document to the interface provided by GlobalModel, and fires a corresponding event through the SingleDisplayModelListener class, which is a subclass of GlobalModelListener.

Note that this behavior is not included in the DefaultGlobalModel because the notion of a single active document is specific to this user interface. Alternative GUIs might choose to display multiple documents simultaneously, eliminating the need for this additional constraint. Housing this logic in a subclass of DefaultGlobalModel, rather than in MainFrame itself, allows us to verify through unit tests that only one document can be active.

User Interface

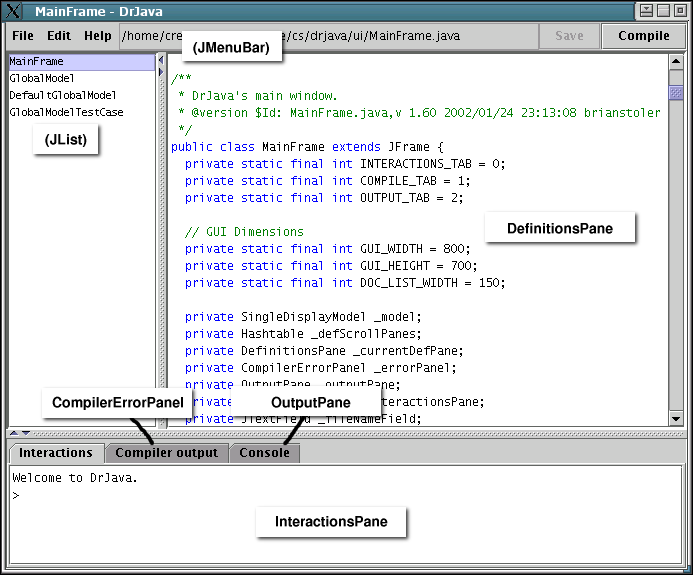

The graphical user interface is implemented in Swing and is coordinated through the MainFrame class. The general layout and primary components of the interface are shown in the image below.

MainFrame

The MainFrame is the JFrame which houses all other components of the GUI. It is solely a means of displaying the state and logic kept within its SingleDisplayModel, and maintains as little state of its own as possible. The MainFrame consists of a JMenuBar containing the menus, current filename, and toolbar buttons, together with a collection of panes for displaying the various components of DrJava. These include a scrollable JList with the OpenDefinitionDocuments, a DefinitionsPane for displaying and editing the source code, and a tabbed pane at the bottom which houses the InteractionsPane, CompilerErrorPanel, and OutputPane.

In addition to setting up the GUI and passing action requests to the model, MainFrame is also responsible for listening to events fired by both the GlobalModel and the document itself, in order to keep the display current.

Other Components

• The primary GUI component outside the MainFrame is the DefinitionsPane, which is a JEditorPane that is tied to a specific OpenDefinitionsDocument in the model. This pane handles all highlighting and text indenting for its document, as well as undoing actions specific to the document.
• The InteractionsPane is held in the tabbed pane at the bottom of the interface and provides the actual interaction with the repl interpreter within the GlobalModel.
• The CompilerErrorPanel is another tab in the tabbed pane, and contains both a JComboBox for selecting the compiler and an ErrorListPane for displaying all the errors from the most recent compilation, sorted by document. The ErrorListPane is an inner class of CompilerErrorPanel, and is responsible for highlighting errors in the list and in the source consistently.
• The OutputPane is the third tab in the tabbed pane, and is simply where System.out and System.err are redirected when DrJava is run.
• The FindReplaceDialog is a separate JDialog which handles the logic and state of finding and replacing text in the code, including highlighting and changing the source position as necessary. Only one FindReplaceDialog exists in the GUI, and it must be notified each time the active document is changed.
